2011 Harley Davidson FXDF Fat Bob is one motorcycle issued by the manufacturer Harley Davidson with dyna glide edition which supported the body design is comfortable to use. 2011 Harley Davidson FXDF Fat Bob has a capacity of 1584 cc engine with a ratio of bore x stroke 95.3 mm x 111.3 mm. For the type of engine that is Engine4 Air-cooled, Twin Cam 96™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder.
2011 Harley Davidson FXDF Fat Bob 1
2011 Harley Davidson FXDF Fat Bob 2
2011 Harley Davidson FXDF Fat Bob 3
2011 Harley Davidson FXDF Fat Bob 4

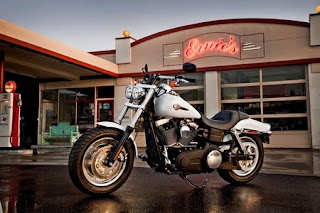

2011 Harley Davidson FXDF Fat Bob 5U.S. MSRP - Vivid Black $14,999. Solids $15,374
DIMENSIONS
Length 91.7 in. (2329 mm)
Overall Width 35.0 in. (889 mm)
Overall Height 44.5 in. (1130 mm)
Seat Height:
• Laden2 26.1 in. (663 mm)
• Unladen 27.0 in. (686 mm)
Ground Clearance 4.92 in. (125 mm)
Rake (steering head) 29°
Fork Angle 28°
Trail 4.92 in. (125 mm)
Wheelbase 63.7 in. (1618 mm)
Tires (Dunlop® Harley-Davidson Series, bias blackwall front and rear):
• Front – D427F 130/90B16 67H
• Rear – D427 180/70B16 77H
Fuel Capacity 5.0 gal. (18.9 L) (warning light at approximately 0.9 gal.)
Oil Capacity (w/filter) 3.0 qts. (2.8 L)
Transmission Capacity 1.0 qts.
Primary Chain
Case Capacity3 1.0 qts.
Weight:
• As Shipped 670 lbs. (303.8 kg)
• In Running Order 703 lbs. (318.9 kg)
• Gross Vehicle Weight Rating 1085 lbs. (492.2 kg)
• Gross Axle Weight Rating:
• Front 390 lbs. (176.9 kg)
• Rear 695 lbs. (315.3 kg)
ENGINE
Engine4 Air-cooled, Twin Cam 96™ Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 in. x 4.38 in. (95.3 mm x 111.3 mm)
Displacement 96 cu. in. (1584 cc)
Compression Ratio 9.2:1
Fuel System4 Electronic Sequential Port Fuel Injection (ESPFI)
Air Cleaner Fiberglass Media, washable
Lubrication System Pressurized, dry-sump
DRIVETRAIN
Primary Drive Chain, 34/46 ratio
Final Drive Belt, 32/66 ratio
Clutch Multi-plate, wet
Transmission 6-Speed Cruise Drive®
U.S. Gear Ratios (overall):
• 1st 9.311
• 2nd 6.454
• 3rd 4.793
• 4th 3.882
• 5th 3.307
• 6th 2.79
CHASSIS
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded
Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded
Front Forks 49 mm with polished aluminum fork triple clamp and dual-rate springs
Rear Shocks Fully Covered, Coil-over shock
Wheels5:
• Front Silver, Solid Disc Cast Aluminum 16 in. x 3 in. (406 mm x 76 mm)
• Rear Silver, Slotted Disc Cast Aluminum 16 in. x 5 in. (406 mm x 127 mm)
Brakes:
• Caliper Type 4-piston fixed front, and 2-piston torque-free floating rear
• Rotor Type (diameter x width): Patented, uniform expansion rotors (floating, front only)
• Front (dual floating) 11.8 in. x .2 in. (300 mm x 5 mm)
• Rear 11.5 in. x .23 in. (292 mm x 6 mm)
Suspension Travel:
• Front Wheel 5 in. (127 mm)
• Rear Wheel 2.13 in. (54.102 mm)
PERFORMANCE
Engine Torque6 (per SAE J1349):
• North America 92 ft. lbs. @ 3000 RPM (125 Nm @ 3000 RPM)
Lean Angle:
• Right 30°
• Left 31°
Fuel Economy7
(EPA urban/highway test) 34/53 mpg (6.90/4.40 L/100 km)
ELECTRIC
Battery (per Battery Council International Rating)
Sealed, maintenance-free, 12V, 19-amp/hour, 270 cca
Charging Three-phase, 40-amp system (493W @ 13.5V, 2000 RPM, 540W max power @ 13.5V)
Starting 1.2 kW electric with solenoid shift starter motor engagement
Lights (as per country regulation):
• Headlamp (dual quartz halogen) 55-watt low beam, 60-watt high beam
• Tail/Stop Lights 8W/28W (5W/21W)
• Turn Signal Lights 28W (21W) self-canceling
• Indicator Lamps - High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system8 (optional), 6-speed, low fuel warnings
Electric Power Outlet Standard
COLOR OPTIONS
Solids
• Vivid Black
• Cool Blue Pearl
• Sedona Orange
• Black Denim
• White Hot Denim
WARRANTY
Warranty9 24 months (unlimited mileage)
Service Interval First 1,000 miles (1,600 km), every 5,000 miles (8,000 km) thereafter
1 Vehicles depicted may differ from vehicles manufactured and delivered.
Specifications and prices listed may differ from specifications and prices
of vehicles manufactured and delivered. All product descriptions (including
depictions, specifications, dimensions, measurements, ratings and competitive
comparisons) are based on available information at the time of publication.
Although such descriptions are believed correct, errors and changes can
occur and complete accuracy cannot be guaranteed. Harley-Davidson may
make changes at any time to prices and specifications, and may change
or discontinue models, without notice and without incurring any obligation.
Attention: Vehicles in the configurations shown and many of the accessories
described in this catalog may not be available for sale or use in some locations.
Please check with your dealer for complete product details and the latest
information. All models feature 6-speed transmission (VRSC™ models and
Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate
clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
2 Measurement reflects 180 lb. (81.7 kg) operator weight.
3 Primary case oil fill is 32 oz. or as needed to fill to bottom of diaphragm.
4 Recommended 91 octane or higher fuel (R+M)/2.
5 Standard and optional wheels may vary by country and region.
6 Values shown are nominal. Performance may vary by country and region.
7 Estimated from fuel economy tests on a sample motorcycle from the
corresponding family conducted by Harley-Davidson under ideal laboratory
conditions. Not all motorcycle models undergo fuel economy testing. Fuel
economy and mileage may vary among motorcycle models within a family. Your
mileage may vary depending on your personal riding habits, weather conditions,
trip length, vehicle condition and vehicle configuration and other conditions.
Break-in mileage may vary.
8 North America security system includes immobilizer; outside North America the
security system includes immobilizer and siren.
9 See motorcycle owner’s manual for complete details.
2011 Harley-Davidson FXDF Fat Bob - Canada Specifications
Canadian MSRP - See your local retailer for pricing information.
DIMENSIONS Metric Units
Length 2330 mm
Seat Height
Laden 1
Unladen 1 690 mm
Ground Clearance 125 mm
Rake Steering Head
Trail 125 mm
Wheelbase 1620 mm
Fuel Capacity 18.78 L
Oil Capacity 2.8 L
Weight
Dry Weight 305 kg
Running Order 320 kg
Luggage Capacity
Volume
Weight
POWERTRAIN
Engine 2 Air-cooled, Twin Cam 96™Air-cooled, Twin Cam 96™
Displacement 1584 cc
Bore x Stroke in. / in.95.3 mm / 111.1 mm
Engine Torque J1349
Engine Torque 3 ft. lbs. @ rpm129 Nm @ 3750 rpm
Fuel System 4 Electronic Sequential Port Fuel Injection (ESPFI)Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio 9.2:1
Primary Drive Chain, 34/46 ratioChain, 34/46 ratio
Fuel Economy
Fuel Economy City 5 6.72 l/100km
Fuel Economy Hwy 5 4.36 l/100km
Gear Ratio (Overall)
1st 9.31
2nd 6.453
3rd 4.793
4th 3.881
5th 3.306
6th 2.79
WHEELS / TIRES
Wheels
Front 6 Silver, Solid Disc Cast AluminumMachined Aluminum Slotted Disc
Wheel Option 6
Rear 6 Silver, Solid Disc Cast AluminumMachined Aluminum Slotted Disc
Tire Size
Front
Rear
ELECTRICAL
Instruments Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator lightTank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicator lights, 6-speed indicator light
Indicator Lamps 7 High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warningsHigh beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings
CHASSIS
Brakes 4-piston fixed front, and 2-piston torque-free floating rear4-piston fixed front, and 2-piston torque-free floating rear
Parking Brake
Lean Angle
Exhaust System Chrome, "Tommy Gun" 2-1-2 collector exhaust with dual mufflersChrome, "Tommy Gun" 2-1-2 collector exhaust with dual mufflers
COLOR OPTIONS
Vivid Black
Cool Blue Pearl
Sedona Orange
Black Denim
White Hot Denim
1 Measurement reflects 180 lb. (81.7 kg) operator weight.
2 Recommended 91 octane or higher fuel (R+M)/2.
3 Values shown are nominal. Performance may vary by country and region.
4 Standard and optional fuel systems may vary by country.
5 Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.
6 Standard and optional wheels may vary by country and region.
7 North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
8 See motorcycle owner's manual for complete details.
Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
