2011 Ducati hypermotard 1100 EVO SP is a new motorcycle ducati issued by the manufacturer in 2011 this. This motorcycle is one hypermotard edition issued by the manufacturer Ducati. Ducati Hypermotard 1100 EVO SP has a 1078cc engine capacity by comparison Bore X Stroke = 98x71.5mm.

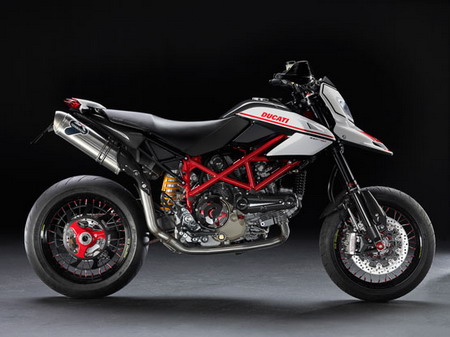

Motorcycle 2011 Ducati Hypermotard 1100 EVO SP White
Motorcycle 2011 Ducati Hypermotard 1100 EVO SP Red2011 Ducati Hypermotard 1100 EVO SP Edition - North American Specifications
USA MSRP - $14,495 USD
Engine
TYPE
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
DISPLACEMENT
1078cc
BORE X STROKE
98x71.5mm
COMPRESSION RATIO
11.3:1
POWER
95hp (69.9kW) @ 7500rpm
TORQUE
75.9lb-ft 10.5kgm @ 5750rpm
FUEL INJECTION
Siemens electronic fuel injection, 45mm throttle body
EXHAUST
Lightweight 2-1-2 system with catalytic converter with twin lambda probes.
Transmission
GEARBOX
6 speed
RATIO
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=24/28
PRIMARY DRIVE
Straight cut gears, Ratio 1.84:1
FINAL DRIVE
Chain, Front sprocket 15, Rear sprocket 41
CLUTCH
Dry multiplate with hydraulic control
Chassis
FRAME
Tubular steel Trellis frame
WHEELBASE
1465mm (57.7in)
RAKE
24°
FRONT SUSPENSION
Marzocchi 50mm fully adjustable usd forks with DLC
FRONT WHEEL TRAVEL
195mm (7.7in)
FRONT WHEEL
5-spoke in forged light alloy 3.50x17
FRONT TYRE
Pirelli Diablo Supercorsa SP 120/70 ZR17
REAR SUSPENSION
Progressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm
REAR WHEEL TRAVEL
156mm (6.1in)
REAR WHEEL
5-spoke forged light alloy 5.50x17
REAR TYRE
Pirelli Diablo Supercorsa SP 180/55 ZR17
FRONT BRAKE
2 x 305mm semi-floating discs, radially mounted Brembo Monobloc callipers 4-piston, 2-pad
REAR BRAKE
245mm disc, 2-piston calliper
FUEL TANK CAPACITY
12.4l - 3.3 gallon (US)
DRY WEIGHT
171kg (377lb)
INSTRUMENTS
Digital unit with displays for: Speedometer, rev counter, lap times, time, oil temp, battery voltage, A & B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Immobilizer system and management of DDA system
WARRANTY
2 years unlimited mileage
BODY COLOUR (FRAME/WHEEL)
Corse red (red / black) - Corse white (red / black)
VERSIONS
Dual seat
SEAT HEIGHT
875mm (34.5in)
DDA
DDA
Standard equipment
DTC
DTC
Not available on this model
ABS
ABS
Not available on this model
Emissions
STANDARD
follows the US Federal Regulation
2011 Ducati Hypermotard 1100 EVO SP Edition - UK Specifications
UK MSRP - Starting from £10,750
Prices quoted are SRP's including 17.5% VAT
Engine
TYPE
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
DISPLACEMENT
1078cc
BORE X STROKE
98x71.5mm
COMPRESSION RATIO
11.3:1
POWER
95hp (69.9kW) @ 7500rpm
TORQUE
75.9lb-ft 10.5kgm @ 5750rpm
FUEL INJECTION
Siemens electronic fuel injection, 45mm throttle body
EXHAUST
Lightweight 2-1-2 system with catalytic converter with twin lambda probes.
Transmission
GEARBOX
6 speed
RATIO
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=24/28
PRIMARY DRIVE
Straight cut gears, Ratio 1.84:1
FINAL DRIVE
Chain, Front sprocket 15, Rear sprocket 41
CLUTCH
Dry multiplate with hydraulic control
Chassis
FRAME
Tubular steel Trellis frame
WHEELBASE
1465mm (57.7in)
RAKE
24°
FRONT SUSPENSION
Marzocchi 50mm fully adjustable usd forks with DLC
FRONT WHEEL TRAVEL
195mm (7.7in)
FRONT WHEEL
5-spoke in forged light alloy 3.50x17
FRONT TYRE
Pirelli Diablo Supercorsa SP 120/70 ZR17
REAR SUSPENSION
Progressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm
REAR WHEEL TRAVEL
156mm (6.1in)
REAR WHEEL
5-spoke forged light alloy 5.50x17
REAR TYRE
Pirelli Diablo Supercorsa SP 180/55 ZR17
FRONT BRAKE
2 x 305mm semi-floating discs, radially mounted Brembo Monobloc callipers 4-piston, 2-pad
REAR BRAKE
245mm disc, 2-piston calliper
FUEL TANK CAPACITY
12.4l - 3.3 gallon (US)
DRY WEIGHT
171kg (377lb)
INSTRUMENTS
Digital unit with displays for: Speedometer, rev counter, lap times, time, oil temp, battery voltage, A & B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Immobilizer system and management of DDA system
WARRANTY
2 years unlimited mileage
BODY COLOUR (FRAME/WHEEL)
Corse red (red / black) - Corse white (red / black)
VERSIONS
Dual seat
SEAT HEIGHT
875mm (34.5in)
DDA
DDA
Standard equipment
DTC
DTC
Not available on this model
ABS
ABS
Not available on this model
Emissions
STANDARD
Euro 3
USA MSRP - $14,495 USD
Engine
TYPE
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
DISPLACEMENT
1078cc
BORE X STROKE
98x71.5mm
COMPRESSION RATIO
11.3:1
POWER
95hp (69.9kW) @ 7500rpm
TORQUE
75.9lb-ft 10.5kgm @ 5750rpm
FUEL INJECTION
Siemens electronic fuel injection, 45mm throttle body
EXHAUST
Lightweight 2-1-2 system with catalytic converter with twin lambda probes.
Transmission
GEARBOX
6 speed
RATIO
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=24/28
PRIMARY DRIVE
Straight cut gears, Ratio 1.84:1
FINAL DRIVE
Chain, Front sprocket 15, Rear sprocket 41
CLUTCH
Dry multiplate with hydraulic control
Chassis
FRAME
Tubular steel Trellis frame
WHEELBASE
1465mm (57.7in)
RAKE
24°
FRONT SUSPENSION
Marzocchi 50mm fully adjustable usd forks with DLC
FRONT WHEEL TRAVEL
195mm (7.7in)
FRONT WHEEL
5-spoke in forged light alloy 3.50x17
FRONT TYRE
Pirelli Diablo Supercorsa SP 120/70 ZR17
REAR SUSPENSION
Progressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm
REAR WHEEL TRAVEL
156mm (6.1in)
REAR WHEEL
5-spoke forged light alloy 5.50x17
REAR TYRE
Pirelli Diablo Supercorsa SP 180/55 ZR17
FRONT BRAKE
2 x 305mm semi-floating discs, radially mounted Brembo Monobloc callipers 4-piston, 2-pad
REAR BRAKE
245mm disc, 2-piston calliper
FUEL TANK CAPACITY
12.4l - 3.3 gallon (US)
DRY WEIGHT
171kg (377lb)
INSTRUMENTS
Digital unit with displays for: Speedometer, rev counter, lap times, time, oil temp, battery voltage, A & B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Immobilizer system and management of DDA system
WARRANTY
2 years unlimited mileage
BODY COLOUR (FRAME/WHEEL)
Corse red (red / black) - Corse white (red / black)
VERSIONS
Dual seat
SEAT HEIGHT
875mm (34.5in)
DDA
DDA
Standard equipment
DTC
DTC
Not available on this model
ABS
ABS
Not available on this model
Emissions
STANDARD
follows the US Federal Regulation
2011 Ducati Hypermotard 1100 EVO SP Edition - UK Specifications
UK MSRP - Starting from £10,750
Prices quoted are SRP's including 17.5% VAT
Engine
TYPE
L-Twin cylinder, 2 valve per cylinder Desmodromic, air cooled
DISPLACEMENT
1078cc
BORE X STROKE
98x71.5mm
COMPRESSION RATIO
11.3:1
POWER
95hp (69.9kW) @ 7500rpm
TORQUE
75.9lb-ft 10.5kgm @ 5750rpm
FUEL INJECTION
Siemens electronic fuel injection, 45mm throttle body
EXHAUST
Lightweight 2-1-2 system with catalytic converter with twin lambda probes.
Transmission
GEARBOX
6 speed
RATIO
1=37/15 2=30/17 3=27/20 4=24/22 5=23/24 6=24/28
PRIMARY DRIVE
Straight cut gears, Ratio 1.84:1
FINAL DRIVE
Chain, Front sprocket 15, Rear sprocket 41
CLUTCH
Dry multiplate with hydraulic control
Chassis
FRAME
Tubular steel Trellis frame
WHEELBASE
1465mm (57.7in)
RAKE
24°
FRONT SUSPENSION
Marzocchi 50mm fully adjustable usd forks with DLC
FRONT WHEEL TRAVEL
195mm (7.7in)
FRONT WHEEL
5-spoke in forged light alloy 3.50x17
FRONT TYRE
Pirelli Diablo Supercorsa SP 120/70 ZR17
REAR SUSPENSION
Progressive linkage with fully adjustable Öhlins monoshock. Aluminium single-sided swingarm
REAR WHEEL TRAVEL
156mm (6.1in)
REAR WHEEL
5-spoke forged light alloy 5.50x17
REAR TYRE
Pirelli Diablo Supercorsa SP 180/55 ZR17
FRONT BRAKE
2 x 305mm semi-floating discs, radially mounted Brembo Monobloc callipers 4-piston, 2-pad
REAR BRAKE
245mm disc, 2-piston calliper
FUEL TANK CAPACITY
12.4l - 3.3 gallon (US)
DRY WEIGHT
171kg (377lb)
INSTRUMENTS
Digital unit with displays for: Speedometer, rev counter, lap times, time, oil temp, battery voltage, A & B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. Plus: Immobilizer system and management of DDA system
WARRANTY
2 years unlimited mileage
BODY COLOUR (FRAME/WHEEL)
Corse red (red / black) - Corse white (red / black)
VERSIONS
Dual seat
SEAT HEIGHT
875mm (34.5in)
DDA
DDA
Standard equipment
DTC
DTC
Not available on this model
ABS
ABS
Not available on this model
Emissions
STANDARD
Euro 3
